Speedometer Gauge Universal Motorcycle Speedometer Oil Gauge Tachometer Digital Meters Motorcycle Meter Speedometer Digital Odomete

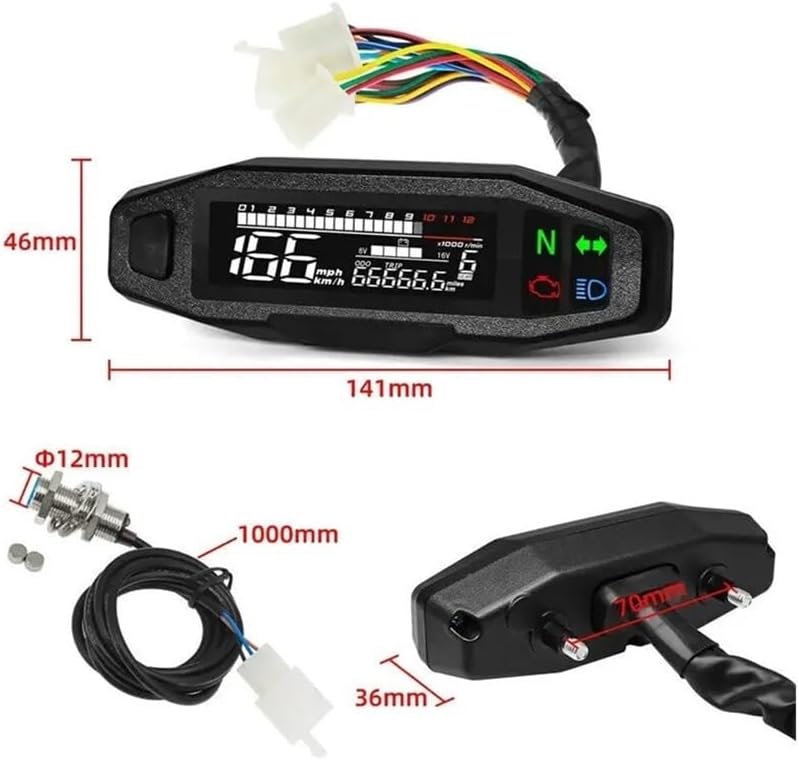

Hello dear friend:Welcome to our motorbike parts shop!We have a wide range of accessories, there is always one for you!Universal Motorcycle Speedometer Oil Gauge Tachometer Digital Motorcycle Meter Speedometer Digital OdometeDescriptipn:1.Max speed : 199km/h2.Max trip: 999.9km3.Max rpm:1200 rpm4.blue wire ~High beam5.yellow-red ~4 level6.blue-red~2 level7.blue-white~RPM8.orange~left turning light9.green~power10.black~positive electrode11.yellow-voltage 5v12.brown-white~5 level13.green-black~3 level14.~1 level15.red~speed16.green-red~ N level17.light blue~right turning lightApplicable models: universal for motorcyclesPower supply voltage: 12V DC power supplyProduct name: Motorcycle modified digital instrumentSpeed range: 0-199km/hSize: 15*9*6cmWiring InstructionsBlue White (Speed)Yellow Black (Engine Fault Light)Black (Positive Electrode)Light Blue (Turn Right)Blue (High Beam)Orange (Turn Left)Green (Negative Pole)Yellow White (Fuel Level)Brown Green (Neutral Gear) (1 Gear)Blue Red (2 Gear)Green Black (3 Gear)Yellow Red (4 Gear)Brown White (5 Gear)Brown (6 Gear)Black White (Speed)Green (Negative Pole)Yellow (5V Output)Due to time difference, we may not be able to reply your message on time, but you can order the item normally.

• Service: if you have any questions about motorbike Speedometer Gauge , please leave us a message, we will reply you as soon as possible.

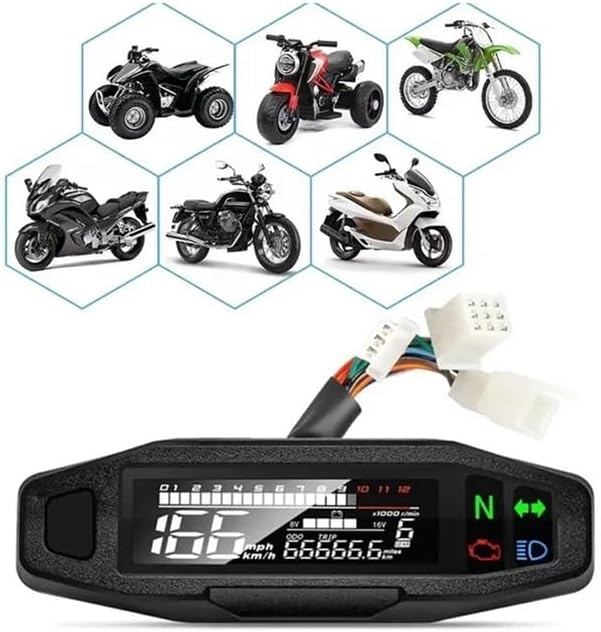

• Applications:Motorcycle Speedometer Oil Gauge Tachometer Digital Meters Universal
• Features: Motorcycle Tachometer Directly connected to your motorcycle original beautiful appearance, novel design.
• Appearance:The motorcycle tachometer instrument is made and very beautiful
• PERFORMANCE: MotorbikeSpeedometer Gauge not only looks beautiful, but also provides better protection for your safety.
